The cones and the cover panels are the construction parts forming the upper termination of the transition round block, and reduce it to the size of the inlet opening. The levelling rings or the covers are placed on the construction parts. It includes the construction parts of the overhaul channels used for the inspection, maintenance, ventilation, and deaerating sewer without the access of the maintenance. The cones are fitted with steel climbers with plastic coating built in dowel pins.

Pricelist

CSB - CONES AND SHAFT COVER SLABS, DN 800, THK 90 MM Height Minimum expedition amount VAT excl. price VAT incl. price Number
cone 800/625, THK 90 mm
600 mm 1 piece 1,680 CZK 2,033 CZK
pcs i
cone 800/625 with steps, THK 90 mm
600 mm 1 piece 1,900 CZK 2,299 CZK
pcs i
cone 800/625 with steps, THK 90 mm, pocket steps
300 mm 1 piece 1,810 CZK 2,190 CZK
pcs i
cover shaft slab 800/100, class A15, half, THK 90 mm
100 mm sada 1,510 CZK 1,827 CZK
sets i
cover shaft slab 800/625, class B 125, THK 90 mm, hs 200 mm 200 mm 1 piece 1,750 CZK 2,118 CZK
pcs i
cover shaft slab 800/625, class D 400, THK 90 mm
200 mm 1 piece 2,200 CZK 2,662 CZK
pcs i

Total VAT excl. Total VAT incl.

Technical parameters

CSB - CONES AND SHAFT COVER SLABS, DN 800, THK 90 MM Composition dimensions [mm] Nominal diameter Number [pcs] Weight [kg]
height thickness DN DN of outlet MU per pallete MU
cone 800/625, THK 90 mm 600 90 800/625 - 1 378
cone 800/625 with steps, THK 90 mm 600 90 800/625 - 1 380
cone 800/625 with steps, THK 90 mm, pocket steps 300 90 800/625 - 1 195
cover shaft slab 800/100, class A15, half, THK 90 mm 100 90 800/980 - 4 192
cover shaft slab 800/625, class B 125, THK 90 mm, hs 200 mm 200 90 800/625 - 1 222
cover shaft slab 800/625, class D 400, THK 90 mm 200 90 800/625 - 1 226

You can find more detail for the selected product in technical sheet.

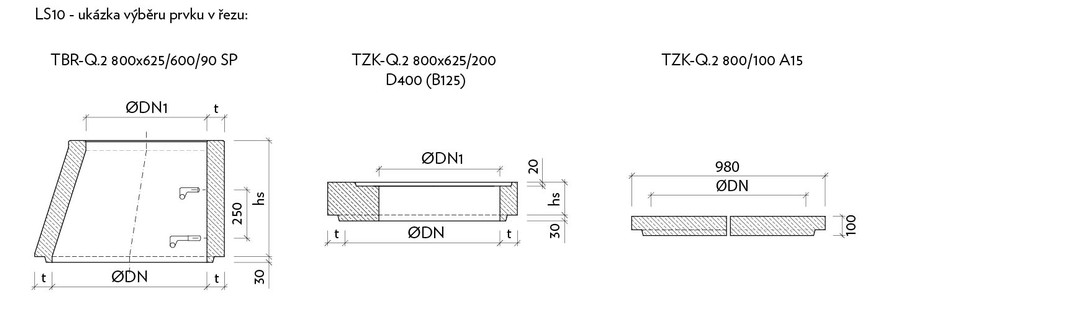

Shapes of product
